ECOO Processor series machine to developer CTP plate after imaging
Feature&Specfications:
| ECOO Processor Series Specifications | |||
| Machine Type | ECOO-P900 | ECOO-P1150 | ECOO-P1500 |
| Page Size | 280-895 mm | 280-1150 mm | 290-1500 mm |
| Plate thickness | 0.15-0.4mm | 0.15-0.4mm | 0.15-0.4mm |
| Processor Power | 10-60 seconds | 10-60 seconds | 10-60 seconds |
| Temperature | 10 to 45 ºC can be adjusted (automatic temperature control, cooling system) | ||
| Developing Capacity | 46L | 58L | 76L |
| Drying Temperature | 20-65 ºC can be adjusted | ||
| Electricity Source | 220 V (210V-240 V)single-phase50-60hz | ||
| Work Rate | 4.5KW | 5KW | 7.5KW |
| Net.Weight | 320kg | 340kg | 800kg |
| Matched CTP | T400, UV400, T800,UV800,T400Q | T800A, UV800A,T800Q | T1600S, T1600M, UV1600S,UV1600M |
Features
1. Robustness, Reliability, and Consistency: Engineered for long-lasting performance and dependable operation.
2. Optimized Plate Processing Path: Streamlined processing ensures efficiency and high-quality results.
3. Unique Roller Design: Innovative roller technology enhances performance and durability.
4. Environmentally Friendly and Energy Saving: Designed to minimize environmental impact and reduce energy consumption.
5. User-Friendly Operation: Intuitive interface and controls make the equipment easy to use.
6. Easy Maintenance: Simplified maintenance procedures ensure minimal downtime.
High Safety Standards: Built to comply with rigorous safety regulations to protect users.

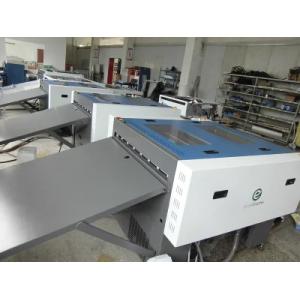

Factory
Installation at Customer Site for Your Reference
FAQ
1. Where is your factory?
Our processor factory is located in Shanghai city.
You are warmly welcome to visit our factory!
2. What is your warranty for this machine?
One year for the Processor.
3. What is the Lead Time?
Usually 10-30 days, and we will try our best to meet your demands.
4. Can you also supply the Workflow and RIP?
Yes, we can provide the Workflow Brain New and RIP Compose V9.
5. What about the Installation and after-sales technician support?
Our engineer can help with the installation and provide the necessary training. The buyer should take the round airplane tickets and service charge and the local accommodation cost. Any problems or questions, we will be at your disposal 7x24 hours.
