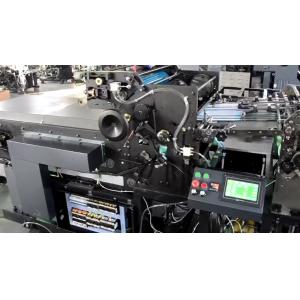

Automatic UV Spot Laminator Coating Machine 620mm 5500Sheets Per Hour
The Ecoo CF 620A UV coating machine offers versatile capabilities for spot UV and overall UV coating on various printed materials and packaging products such as books, posters, and adhesive stickers. Comprising an Auto feed system, vanishing system, curing system, and auto delivery system, it enhances the quality and value of printed products, leading to increased profits for printing companies. Renowned for its high speed and efficiency, it has earned accolades from clients worldwide.
PRODUCT DESCRIPTION
* Compatible with water-based glue, solvent-based glue, and thermal film.
* Incorporates a cold-water non-curling system to prevent paper curling after separation.
* Cost-effective with ceramic anilox roller coating, minimizing glue usage to 5g/sqm.
* Energy-efficient with a heating energy cycle drying system, consuming approximately 15kw/h.
* High efficiency with a working speed of up to 70m/min or 5500 sheets/h.
Remarks:
Laminating speed depends on paper weight, film thickness, and glue material quality.
Specifications are subject to change without prior notice.
Standard Configuration:
- Auto Feeder
- Multifunctional Coating Unit
- UV Curing System
- Auto Delivery Unit
- Auto Control
Specification
| Model | Ecoo CF-620A |
| Max. sheet size | 620×450mm |
| MIN.sheet size | 260×190mm |
| Sheet weight | 60-350g/m2 |
| Production speed | 5500 sheet/hour |
| Power | 15KW |
| UV lamp | 2pcsx5.6kw |
| Weight | 1200KG |
| Dimension | 2950×1200×1450mm |
